1 8

AC Oil Dye Injector Kit

AC Oil Dye Injector Kit

Brand:Boltigen

$38.99
$38.99
Sale Sold out
Shipping calculated at checkout.
  • 【AC Oil Dye Injector】Professional automotive air conditioner compressor A/C dye oil injector with capacity 1/4 oz/7.5ml---2oz/60ml, for injecting oil and dye through low pressure suction side into the air conditioner compressor, the 1/4 SAE port with backflow protection.

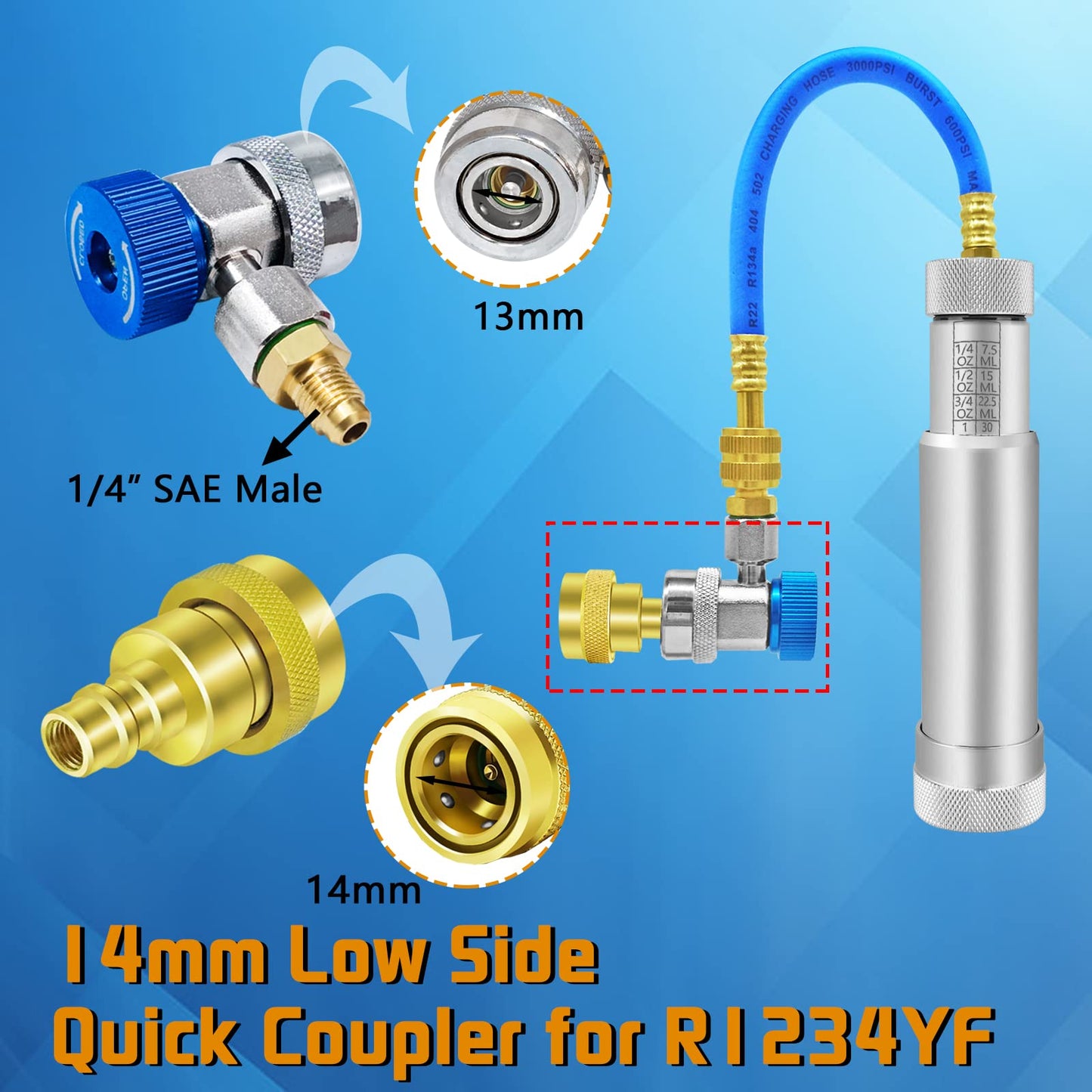

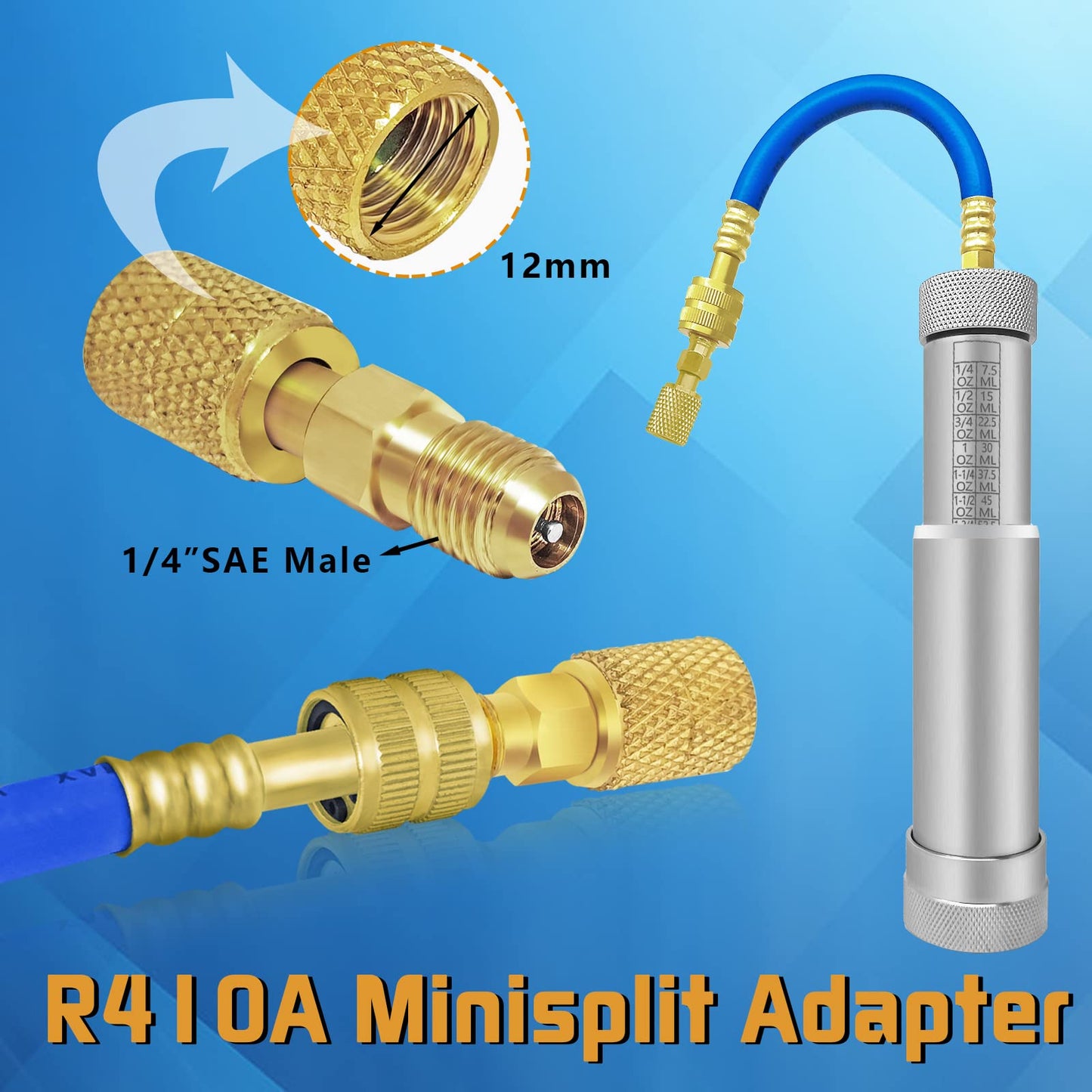

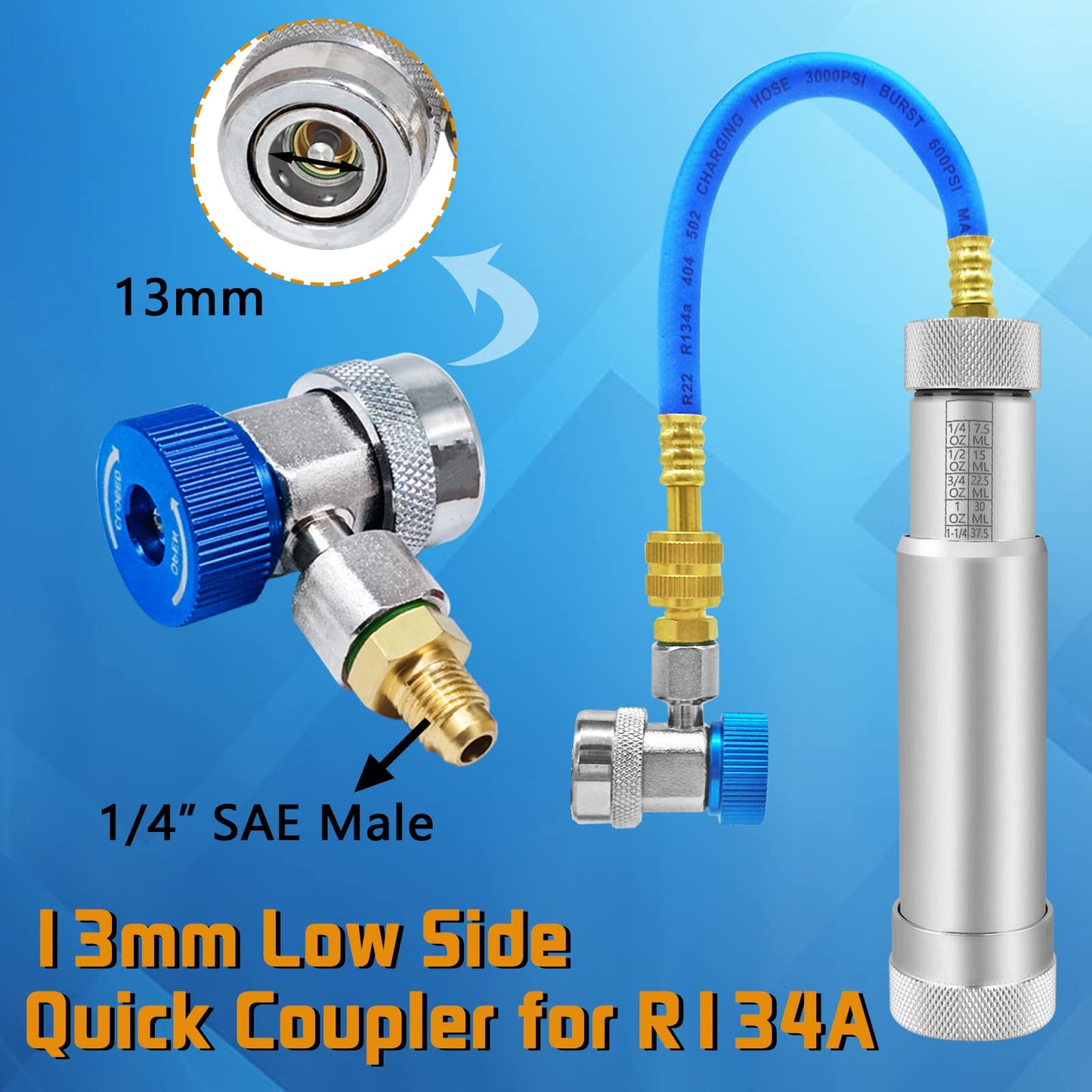

  • 【Refrigerant Adapters】R134A low side quick coupler with 1/4’’ SAE male x 13mm female, R1234yf quick coupler with 14 mm female x low pressure 13mm R134A quick coupler, R410a mini split adapter with 5/16’’ SAE Female to 1/4’’ SAE Male.
  • 【Application】 AC Oil dye injector kit with R134A and R1234YF low side port quick coupler, R410a refrigerant hose adapter, compatible with fluorescent dyes for leak monitoring, all oil types(POE, or mineral oil) and all home office AC and car AC systems.
  • 【How To Use】Oil cylinder of refrigerant oil injector is filled with 2 ounces of refrigeration oil, check valve screwed onto cartridge and tightened. The inner and outer cylinders are tightened clockwise, and then a little 1/4 SAE threaded inner core is used to discharge a little air inside the blue tube. Connect the low-pressure port of the refrigeration system that needs to be refueled, and add the required amount of cooling oil to the inner and outer cylinders.

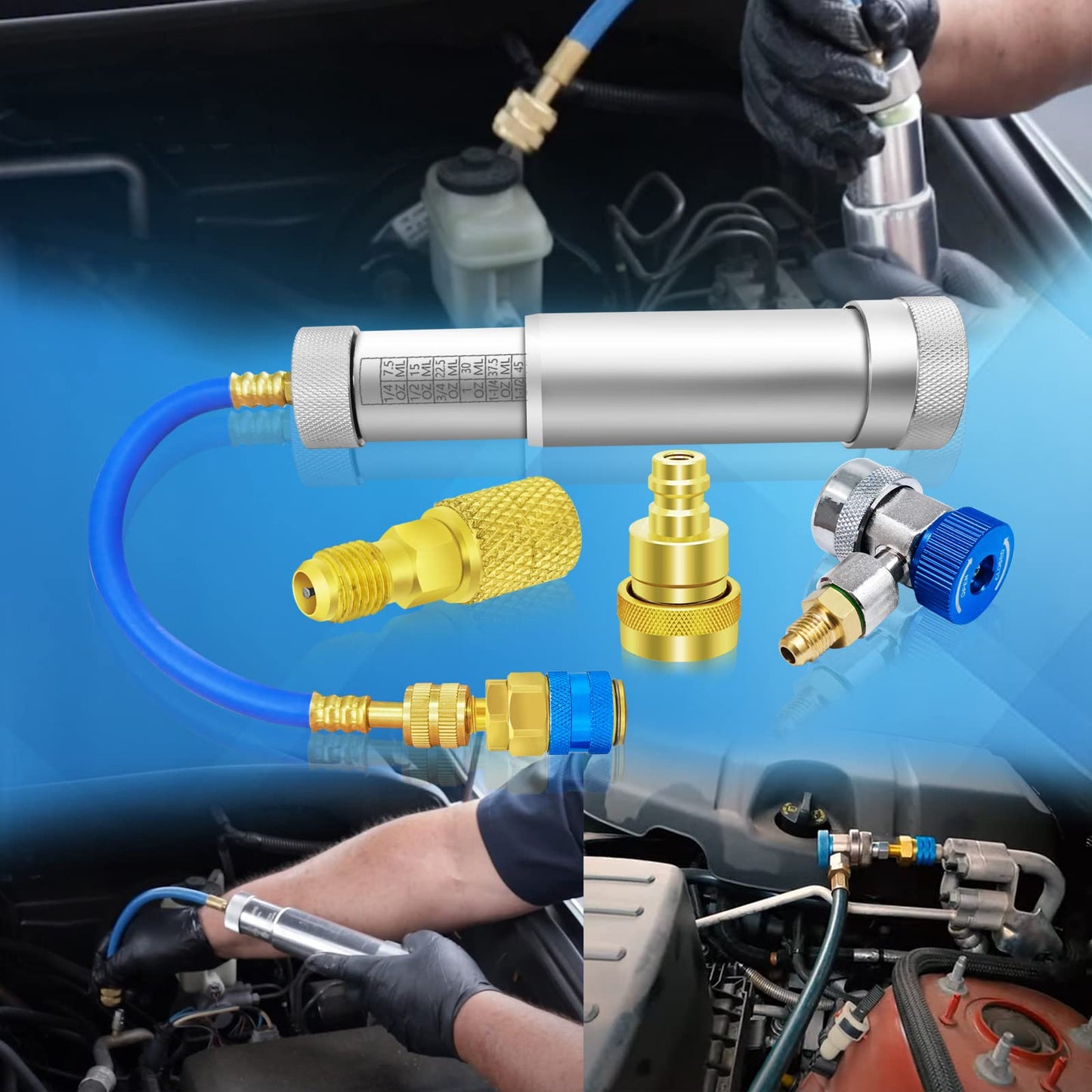

  • 【What You Get】1 x AC oil and dye injector with 2oz capacity, 1 x R1234YF low side quick coupler, 1 x R134A low side quick coupler with valve, 1 x R410 Mini Split Adapter, 1 x valve vore remover

Free Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.Please also note that the shipping rates for many items we sell are weight-based. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Easy Returns

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).If you need to return an item, pleaseContact Uswith your order number and details about the product you would like to return. We will respond quickly with instructions for how to return items from your order.

View full details

Product Description

A/C OIL INJECTOR R134A R1234YF R410A

  • Ideal for Car Home Office AC and Car AC systems, it's a professional service tool.

  • Using Aluminum alloy, with 1/4" female connector, make it compatible with most AC systems (if not, use CV23p for some 5/16" R410a systems).

  • Once shot may cure and save a sickened compressor caused by low oil.

  • Compatible with fluorescent dyes for leak monitoring, compatible with all oil types (POE, or mineral oil) Compatible with all refrigerant types.

  • LONG LASTING HOSE

    • Bulit in hose with no leak coupler seal for safe connection.

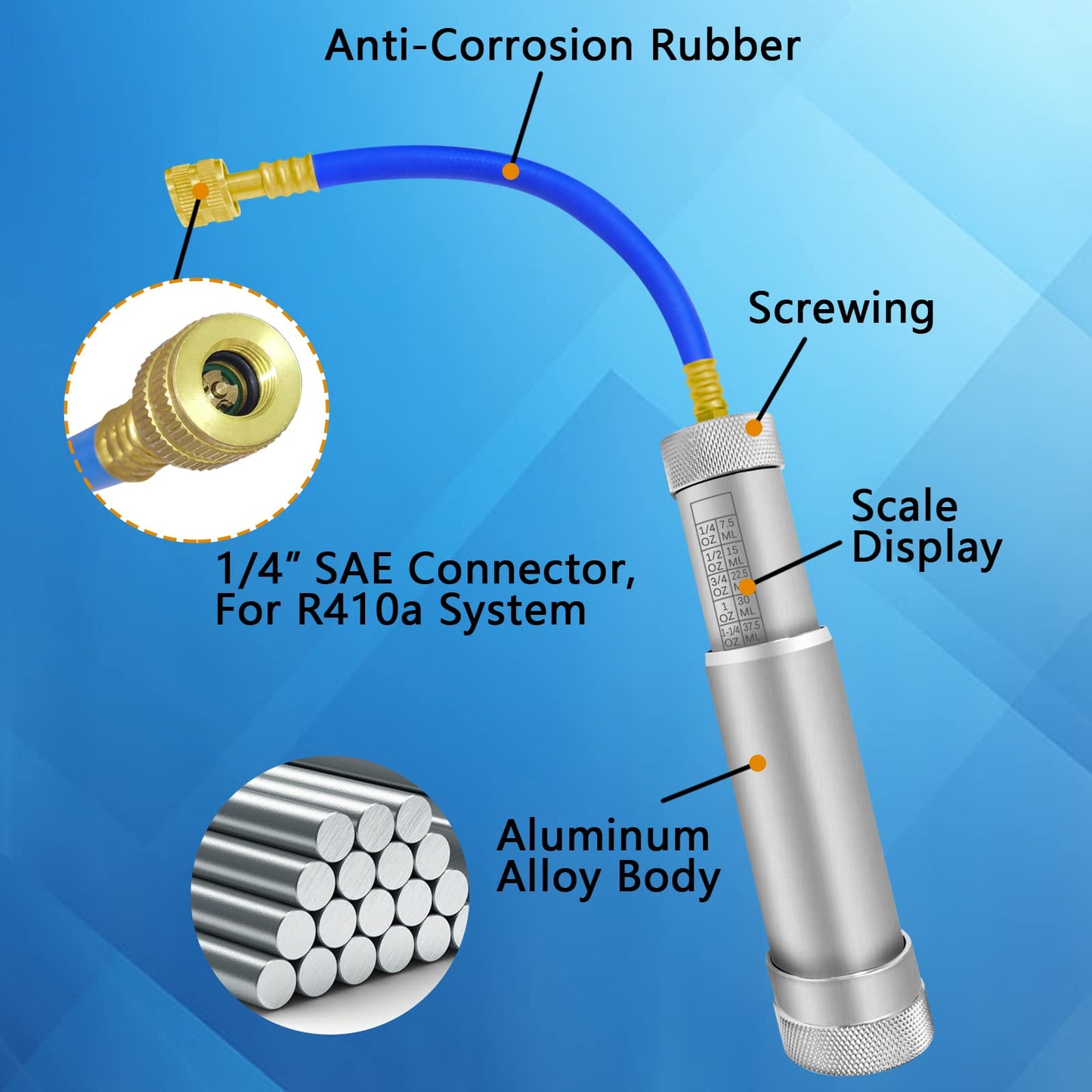

    • Material: aluminum alloy body + brass connector
    • R134A Working Pressure: 3000 PSI
    • Burst Pressure: 600 PSI

  • 1/4 SAE Female with backflow protection

    • When injecting dye into a pressurized system, always wear safety glasses and glove!
    • Never breathe refrigerant vapor!
    • Never use the UV light without wearing the UV glasses!
    • Lamp surface will get hot very quickly. Do Not Touch the Lens!

  • Large Capacity

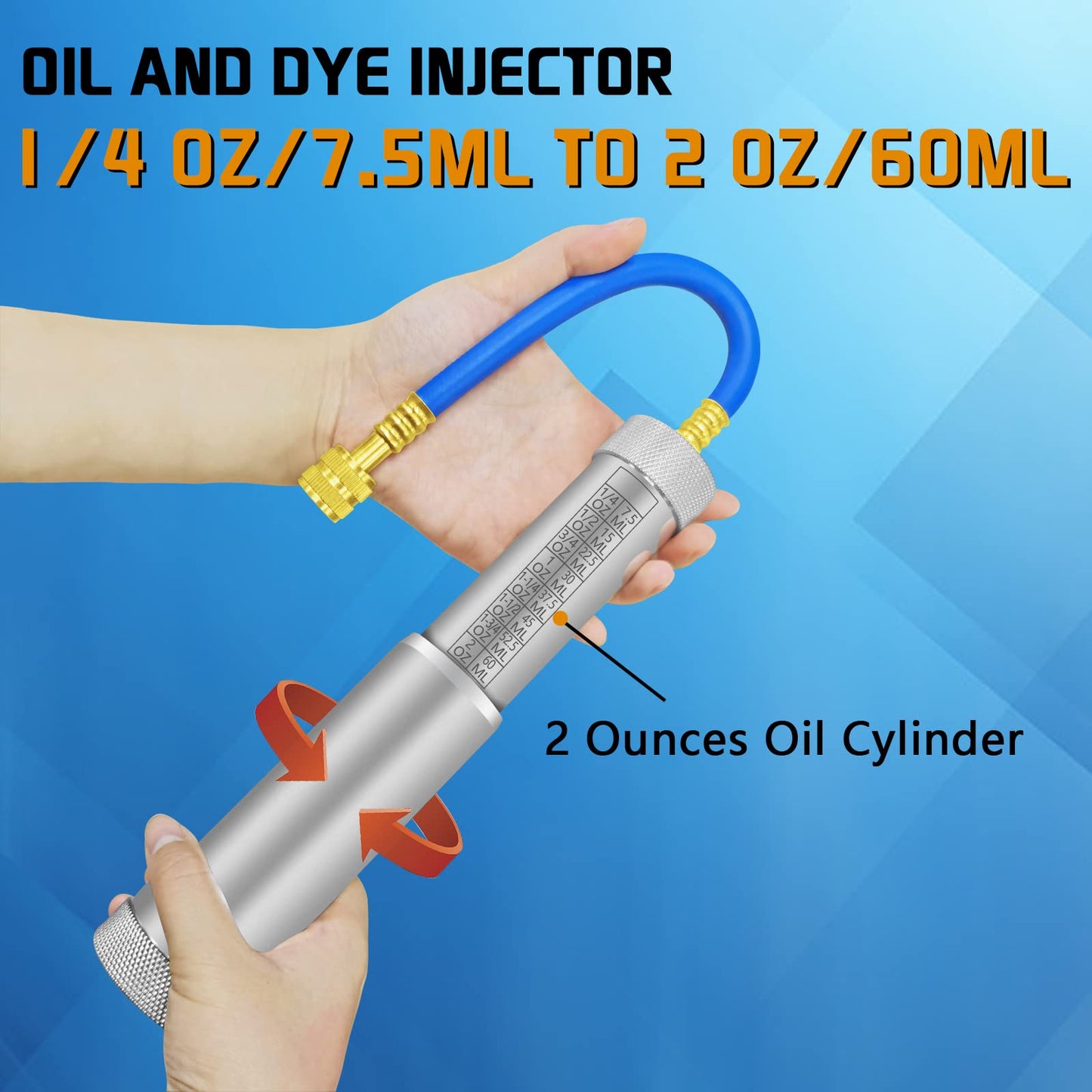

    • Capacity: 1/4 oz/7.5ml, 1/2oz/15ml, 3/4oz/22.5ml, 1oz/30ml, 1 1/4oz/37.5ml, 1 1/2oz/45ml, 1 3/4oz/52.5ml, 2oz/60ml
    • Check valve screwed onto cartridge and tightened. The inner and outer cylinders are tightened clockwise, and then a little 1/4 SAE threaded inner core is used to discharge a little air inside the blue tube.

How do you use AC oil injectors?

1、Before adding any additive to the injector, the shut off valve must be off. Uscrew the end off the injector.

2、Put in the desired amount of additive.

3、Screw the end back on the injector.

4、Connect R134A R12 F22 coupler to the injector.

5、Connect other end of the injector to the low side service port on the vehicle.

6、Open the valve on the injector.

7、With refrigerant attached, fill to proper pressure.

8、When finished using the injector toool, clean well by using brake cleaner.
